Neurobit Optima™ 2 BT / USB

This portable, versatile yet affordable physiological data acquisition equipment can be used in many applications, including:

  • neurofeedback, using EEG and SCP signals,
  • other types of biofeedback, using sEMG, HRV, GSR, skin temperature, respiratory air flow or effort signals,
  • scientific research,
  • brain-computer interfaces,
  • education,
  • sports.

Neurobit Optima distinguishes, among other things, by multimodal measurement channels, which functions can be individually selected by a user.

The equipment is available in wireless, battery powered, wearable version (BT) and in USB powered version, with medical grade galvanic isolation from the computer for safety and low interferences.

Product highlights

  • 2 versatile, low-noise channels enabling measurements of voltage, conductance, resistance and temperature signals.
  • function of each channel is specified by a user (for example 2 x EEG, HRV + RESP or GSR + sEMG etc.)
  • built-in test of electrode-skin impedances and input circuit continuity,
  • independent reference inputs for each channel,
  • connections of inputs to reference electrode(s) configured in software,
  • 16-bit resolution of measurements,
  • 1% accuracy of voltage measurements,
  • output sample rate up to 2000 sps,
  • oversampling (primary sampling rate up to 8000 sps),
  • selectable frequency characteristics enable to minimize signal delay or maximize frequency bandwidth,
  • high immunity to electrical interferences,
  • option of active shielding of sensor cables to reduce movement artifacts,
  • configurable filter of power mains interferences (50/60 Hz or off),
  • full galvanic isolation of the subject's body,
  • real-time transmission of data to a computer,
  • interoperation with many biofeedback applications making possible flexible signal processing and visualization (also in real time), as well as storage in a computer,
  • application programming interface (API),
  • 2 AA battery powered (BT version) or USB powered (USB version),
  • indicators of power, data link and measurement input states,
  • small size and weight,
  • belt clip enabling to wear the device in BT version (USB version has got legs),
  • remote upgrades of program in the device (firmware),
  • standard Touch Protected 1.5mm measurement connectors (DIN 42802),
  • compatibility with most types of routinely used electrodes (AgAgCl, Ag, Au, Sn etc.) having TP connectors, as well as variuous electrode montage solutions,
  • made in European Union,
  • CE mark.

Interoperating software

BioExplorer - Instrument window
BioExplorer - DVD controlled with biofeedback BioExplorer - PacMan biofeedback game
BioExplorer - Session report

Neurobit Optima works with several software applications enabling flexible data processing and storage, audio and visual presentation of feedback signals (graphs, animations, DVD films, games etc.):

  • BioExplorer - popular, feature-rich biofeedback software with visual designs of data processing and presentation.

    Quick start with BioExplorer

    BioExplorer also interoperates with many third party biofeedback games, for example:
    • BioPlay package by Itallis,
    • NeuroPuzzles by Brainclinics,
    • InnerTube, Particle Editor and DualDrive eXtreme by SomaticVision.

  • Mind-Body Training Tools - multimodal biofeedback package for peak performance training

  • BioEra - advanced application for bio-signal processing

    Quick start with BioEra

  • BrainBay - free biofeedback software for personal use

  • eBioo - neurofeedback software for business and other training

  • Neurobit Recorder - freeware for physiological signal recording in EDF (European Data Format) and text files, which can be imported in many applications, such as EEGLAB for Matlab or Excel

Warranty

Neurobit Optima is sold with:

  • 2-year warranty as a standard. Extension is also possible.
  • 30-day money back warranty.

MastercardVisaOnline order Sales terms Guarantee terms

SSL Certificate

IMPORTANT NOTE: This equipment is not a medical product. It is intended for psychological training by neurofeedback & biofeedback, research, education and sports.

More information about the product



Neurobit Optima 2 BT - Portable equipment for neurofeedback, biofeedback and physiological data acquisition

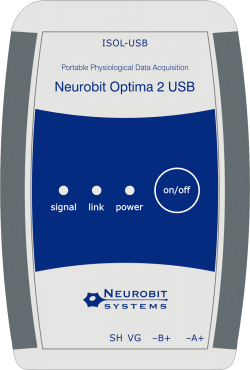

Neurobit Optima 2 USB - Portable equipment for neurofeedback, biofeedback and physiological data acquisition

CE conformity mark Made in European Union

Measurements of physiological signals simpler than ever.

Novelty USB version of Neurobit Optima devices.

Novelty Connections of input ports to reference electrode(s) configured in software.

Novelty Measurement of Slow Cortical Potentials (SCP).

Novelty Support for respiratory effort belt.
