To achieve more, to act better, to live more fully
Feedback is the key

Our products

Neurobit Optima is a family of highly integrated, multimodal, portable devices enabling measurements of physiological signals for

  • psychological training with neurofeedback and biofeedback,
  • scientific research,
  • education and similar applications.

The devices are equipped with 2-4 versatile, accurate, low noise measurement channels with individually configurable functions, sampling rates, frequency characteristics and other parameters.

High sampling rates up to 2000 sps (with 4 times faster input oversampling) allow wideband biosignals to also be captured.

The equipment is available in a wireless, battery powered, wearable version and in a USB powered version, with high class galvanic isolation from the computer for safety and low interference.

Neurobit Optima+ models include an extension port for extra modality sensors: BVP, nIR HEG and pIR HEG. It also allows new digital sensors to be added in the future.

Neurobit Optima+ 4 models are also equipped with an EEG cap interface, with configurable connections between measurement channels and a 10-20 system cap. It facilitates quick QEEG assessments and multi-site EEG training.

All Neurobit Optima devices have built-in tests of electrode-skin impedances and circuit continuity.

All channels have individual reference inputs, with connections to references configured in software.

High amplifier parameters and configurable filters of mains power noise (50 Hz | 60 Hz | off) increase immunity to external interference.

The equipment works with many software applications (including some freeware) for flexible, real-time signal processing, visualization, and storage. The Neurobit API allows new software to be integrated with any Neurobit device.

Our products are made in the European Union.

REMARK: Neurobit Optima(+) devices are not medical products.

Product comparison

  model NO-2 BLE NO-2 USB NO+2 BLE NO+2 USB NO+4 BLE NO+4 USB
product code 101015 101012 101016 101014 101025 101022
link Bluetooth LE isolated
USB
Bluetooth LE isolated
USB
Bluetooth LE isolated
USB
power batteries batteries batteries
versatile channels 2 2 2 2 4 4
built-in impedance tests
software setup of reference inputs
selectable frequency characteristics
selectable time constants, incl. DC1
configurable filter of mains power noise
active shielding option
m
a
i
n

s
u
p
p
o
r
t
e
d

m
o
d
a
l
i
t
i
e
s
EEG
sEMG
ECG
EOG
GSR
HRV
SCP
RESP2
breath air flow
skin temperature
nIR HEG3
pIR HEG3
BVP (PPG)3
  extension port
additional channel for digital sensors4
EEG cap interface5
belt clip
power, link and signal state lights
interoperation with many computer applications6
remote firmware update
application programming interface
CE mark

Notes:
1 DC coupling available for the highest voltage ranges
2 measurement of respiratory effort with a belt
3 in channel A, via EXT port
4 3rd or 5th channel; currently it enables events to be marked with a button
5 with software setup of connections between 4 channels and the cap electrodes
6 BioExplorer, BioEra, BrainAssistant, BrainBay, BT2, BT4BE, EEGer, Mind-Body Training Tools, Neurobit Recorder and more

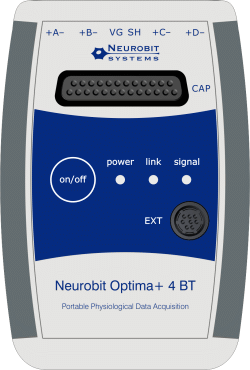

Neurobit Optima+ 4 BLE - Portable equipment for neurofeedback, biofeedback and physiological data acquisition

Neurobit Optima+ 2 BLE - Portable equipment for neurofeedback, biofeedback and physiological data acquisition

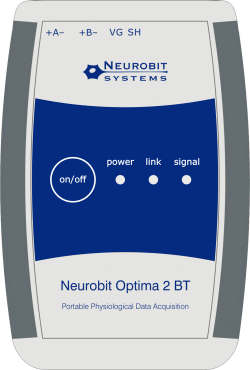

Neurobit Optima 2 BLE - Portable equipment for neurofeedback, biofeedback and physiological data acquisition
